HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
  • HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation
HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation

HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation

Lieu d'origine Chine
Nom de marque Hightop
Numéro de modèle HT-08
Détails de produit
Nom du produit:
HT08 Mini Excavator
Capacité du godet:
0.025 M3
Modèle de moteur:
le KOP 192
Poids:
800KG
Force de creusement de maximum:
7.5KN
Formulaire de pompe:
Pompe à engrenage unique
Pression de fonctionnement réglée:
14MPa
Vitesse de voyage:
2.2km/h
Conditions de paiement et d'expédition
Quantité de commande min
1 ensembles
Détails d'emballage
Emballage en boîte en bois
Délai de livraison
5-8 jours ouvrables
Conditions de paiement
LC, D/A, D/P, T/T, Western Union
Description de produit

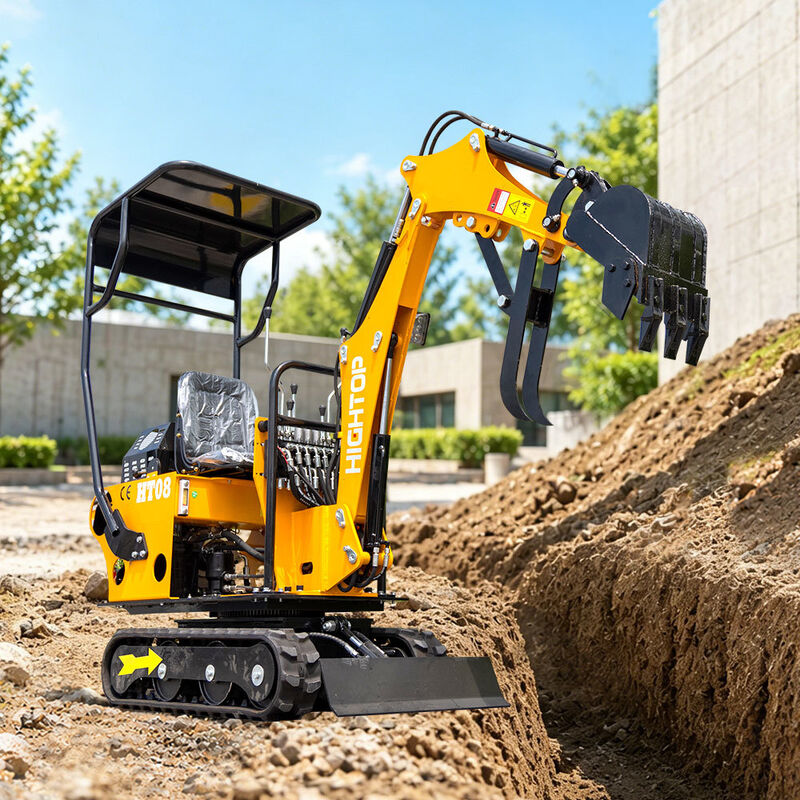

HT08 Mini Excavator
The HT08 800kg mini excavator offers compact design and exceptional flexibility with 360-degree tailless rotation. Engineered for stable performance and strong power with reduced fuel consumption, this multi-purpose machine saves time and labor while delivering long service life. Quick attachment changes enable versatile operation across various applications.
The 0.8-ton compact excavator features engines from internationally recognized brands including Changchai, Briggs & Stratton, and Koop. Compliant with European standards and US EPA environmental requirements, the HT08 carries CE, ISO, BV and other international certifications.
Performance specifications include maximum digging depth of 1300mm, maximum digging distance of 2450mm, and bucket capacity of 0.025 cubic meters.
Key Features
  • Unique large arm structure design for enhanced durability and reduced breakage risk
  • Clear front-end piping protected by durable covers (unlike exposed pipes on some competitor models)
  • Boom cylinder from reputable brands with integrated processing technology superior to welding
  • Precision-processed structural components with shot blasting, pickling, and painting for superior surface finish and paint adhesion
  • Pure cast iron hydraulic pump offering superior wear resistance compared to aluminum pumps at 3600 motor speed
  • High-quality German imported hydraulic pipes
  • Non-slip, wear-resistant tracks from established brands with guaranteed quality
  • Attractive machine design with customizable colors including yellow and black
Performance Parameters
Rated Power 7-7.5kw
Bucket Capacity 0.025 m³
Engine Model Koop 192
Weight 800 kg
Max. Digging Force 7.5KN
Pump Form Single Gear Pump
Set Working Pressure 14Mpa
Swing Speed 12 rpm
Travel Speed 2.2Km/h
Gradeability 30°
Ground Pressure 19Kpa
Working Range
Max. Digging Distance 2450mm
Max. Digging Depth 1200mm
Max. Digging Height 2350mm
Max. Dumping Height 1600mm
Min. Swing Radius 1100mm
Max. Upgrade Height of Bulldozer Blade 120mm
Max. Digging Depth of Bulldozer Blade 200mm
Dimensions
Total Width 720-780mm
Total Height 1300mm
Total Length 2430mm
Min. Ground Clearance 80mm
Track Ground Length 1140mm
Track Width 150mm
Product Gallery
HT08 Mini Excavator front view HT08 Mini Excavator side view HT08 Mini Excavator digging demonstration HT08 Mini Excavator arm detail HT08 Mini Excavator hydraulic system HT08 Mini Excavator track system HT08 Mini Excavator cockpit view HT08 Mini Excavator engine compartment HT08 Mini Excavator in operation HT08 Mini Excavator attachment options HT08 Mini Excavator close-up detail HT08 Mini Excavator transport position HT08 Mini Excavator quality inspection HT08 Mini Excavator final assembly
