| Lieu d'origine | Chine |
| Nom de marque | Hightop |
| Certification | CE，EPA，ISO，TUV |

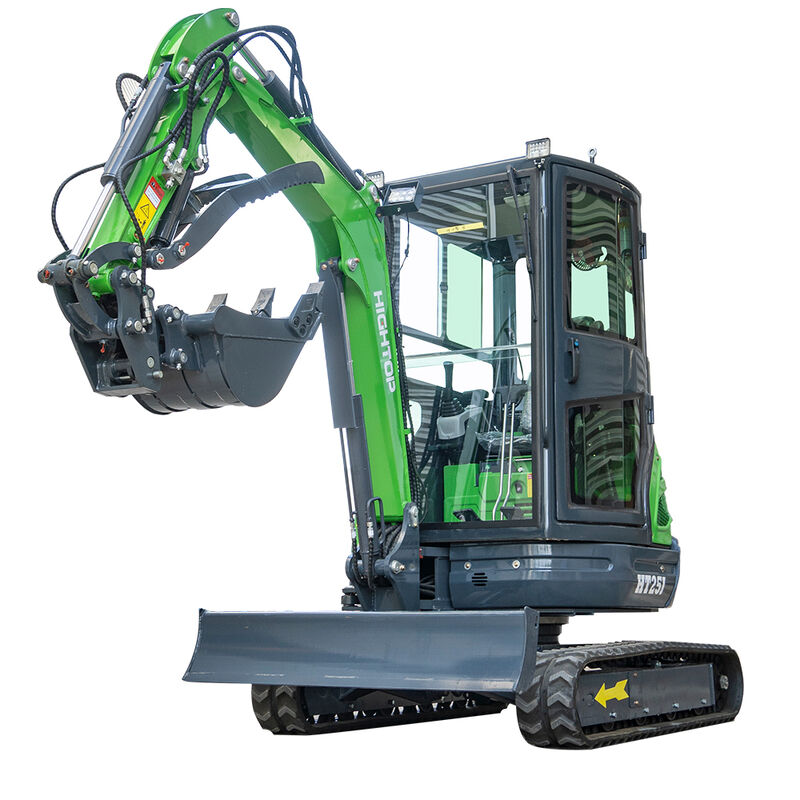

| Numéro de modèle | HT25J |
| Measurement | Value |
|---|---|
| Overall length/Shipping length A | 2895 |
| Total width B | 1400 |
| Upper width D | 1310 |
| Overall height (top of cab) C | 2450 |
| Standard track pad width F | 230 |
| Track gauge G | 1170 |
| Turning radius at the rear I | 709 |
| Track contact length J | 1495 |
| Track length K | 1830 |
| Height of the dozer blade above the ground R | 255 |
| Bucket digging depth T | 250 |
| Specification | Value |
|---|---|
| Work quality (KG) | 1850 |
| Bucket capacity (m³) | 0.04 |
| Rated power | 18.9kw/2200rpm |
| Rotational speed | 10r/min |
| Hill-climbing ability | 30 degrees |
| Measurement | Value |
|---|---|
| Maximum digging height a | 3572 |
| Maximum unloading height b | 2276 |
| Maximum digging depth c | 2245 |
| Maximum excavation distance d | 3705 |
| Minimum turning radius e | 1975 |
| Maximum height f at the minimum turning radius | 2722 |
