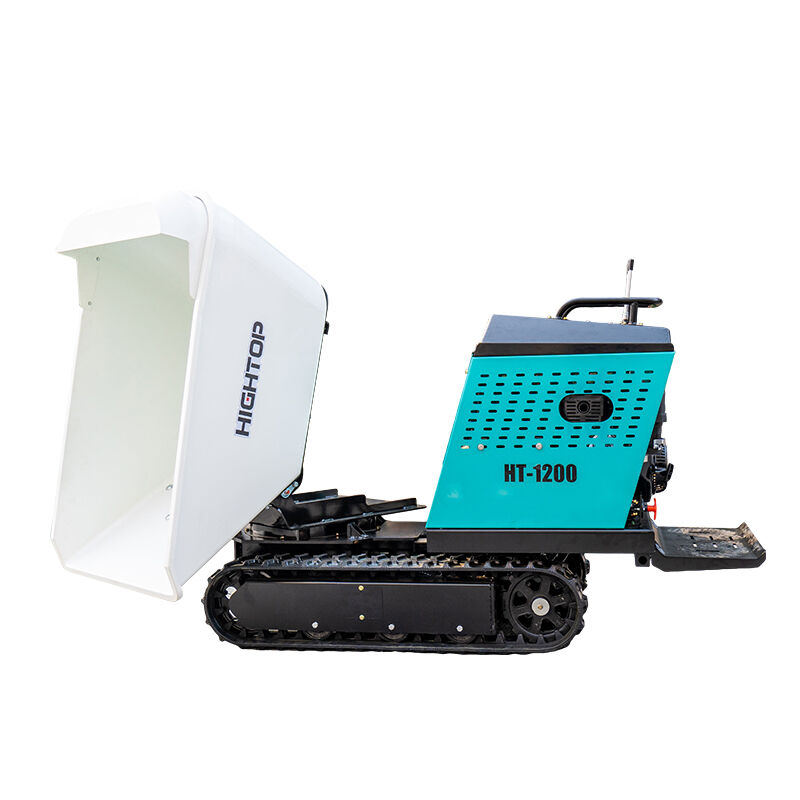

HT1200 Mini Crawler Dumper with 13.5HP Engine

Name: HT1200 Mini Crawler Dumper with 13.5HP Engine
Brand: Shandong Hightop Group
SKU: HT1200
Availability: InStock

Lieu d'origine	Chine
Nom de marque	Hightop
Certification	CE，EPA，ISO，TUV
Numéro de modèle	HT1200

Détails de produit

Modèle de machine:

HT-1200

Modèle de puissance:

Ducar

Type de puissance:

Monocylindre, EPA, 4 temps, refroidi par air

Déplacement total (ML):

420CC

Puissance évaluée (Kw/rpm):

13.5 ch/3600 tours par minute

Mettre en évidence:

13.5HP Engine Mini Crawler Dumper

1200KG Load Capacity Crawler Rotation Dump Truck

180° Rotation Tracked Dump Truck

Conditions de paiement et d'expédition

Conditions de paiement

LC, D/P, D/A, T/T, Western Union

Capacité d'approvisionnement

100 lots par mois

Description de produit

HT1200 Crawler Rotation Dump Truck

The HT1200 Crawler Rotation Dump Truck is engineered for heavy-duty material handling applications, combining powerful performance with exceptional maneuverability across challenging terrains.

Key Features

Powerful 13.5HP Engine: 420CC Da Jiang engine delivers robust performance for handling 1200KG maximum loads
Hydraulic Dump with 180° Rotation: Multi-angle dumping capability with independent or synchronous tilt and rotation control
All-Terrain Rubber Track Chassis: Superior traction and 25° climbing capacity for muddy and rugged terrain
Intuitive Centralized Control: User-friendly control panel with clearly labeled buttons for precise operation
Reinforced Durability: Low-maintenance design with easy-access wear parts for long-term reliability

Technical Specifications

Specification	Details
Machine Model	HT-1200
Power Model	Ducar
Power Type	Single Cylinder, EPA, 4-Stroke, Air-Cooled
Total Displacement	420CC
Rated Power	13.5HP/3600RPM
Fuel Type	92# Gasoline
Fuel Tank Capacity	6L
Net Weight	700KG
Maximum Load Capacity	1200KG
Machine Dimensions (Excluding Footrest)	22108901350mm
Machine Dimensions (Including Footrest)	23958901350mm
Cargo Box Dimensions	1300800600mm
Chassis Width	890mm
Cargo Box Capacity	594dm³
Tipping Method	Hydraulic Tipping
Travel Speed	5.2KM/H
Climbing Capacity	25°
Rotation Angle	R180° Left/Right
Crawler Model	1807241
